 Ellipse
Functions
- measure of the half-axis of an ellipse
- measure the circumfence of an ellipse
- measure the area of an ellipse
Description

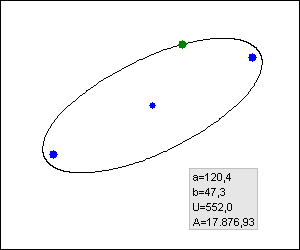

With this measure instrument, you can measure, the half-axis, the
circumfence and the area of an ellipse.
By moving the focal points and the point on> the ellipse
you can modify the ellipse.
Moving the point between the two focal points will move the
complete ellipse.
Functions in the popup menu
| Attach to window
|
when the measure instrument is moved, the window below will be
detected and the instrument attached to this window. If this window
is moved in a further operation, the measure instrument is moved
synchron to this window. This mode is active, as long as the menu
item Attach to window is checkd and the window is visible.
If you minimize this window or close the attached application, the
mode is deactivated, too. |
| Modify - Set to origin state
|
the measure instrument is moved to a defined start
position |
| Modify - Create Copy
|
a copy of the current measure instrument will be created. The
Copy is disabled, but can be enabled or deleted with its popup
menu |
Supported function keys
| <Ctrl><Alt><C> |
copy the measured values to the clipboard |
| <Ctrl><Alt><cursor left> |
move the measure instrument one pixel to the left |
| <Ctrl><Alt><cursor right> |
move the measure instrument one pixel to the right |
| <Ctrl><Alt><cursor up> |
move the measure instrument one pixel up |
| <Ctrl><Alt><cursor down> |
move the measure instrument one pixel down |
Have a look at the function key help
page for more details about the functions keys and how you can
configure them.
Remote Interface
The generel description of the remote interface is here.
Transfer of the measured values
| ValueID
|
Format of the return value |
| 1 |
big half-axis * 10
|
| 2 |
small half-axis * 10
|
| 3 |
circumfence of the ellipse * 10
|
| 4 |
area of the ellipse * 10
|
Transfer of the positioning information
| ValueID
|
Format of the return value |
| 1 |
LoWord: x coordinate of the 1st focal point
HiWord: y coordinate of the 1st focal point |
| 2 |
LoWord: x coordinate of the 2nd focal point
HiWord: y coordinate of the 2nd focal point |
| 3 |
LoWord: x coordinate of the point on the ellipse
HiWord: y coordinate of the point on the ellipse |
| 4 |
LoWord: x coordinate of the info field
HiWord: y coordinate of the info field |
|
