 circle (3 points)
Functions
- measure the radius of a circle
- measure the circumfence of a circle
- measure the area of a circle
Description
Using this measure instrument, you can measure the radius,
circumfence and area of a circle. There are two type of this
measure instrument:

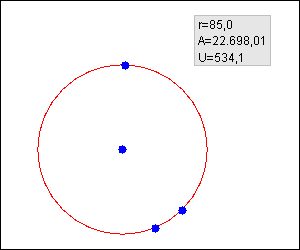

Move one of the three points on the circle. The correct
circle on which all three points lay, is calculated and drawn.
Functions in the popup menu
| Attach to window
|
when the measure instrument is moved, the window below will be
detected and the instrument attached to this window. If this window
is moved in a further operation, the measure instrument is moved
synchron to this window. This mode is active, as long as the menu
item Attach to window is checkd and the window is visible.
If you minimize this window or close the attached application, the
mode is deactivated, too. |
| Modify - Set to origin state
|
the measure instrument is moved to a defined start
position |
| Modify - Create Copy
|
a copy of the current measure instrument will be created. The
Copy is disabled, but can be enabled or deleted with its popup
menu |
Supported function keys
| <Ctrl><Alt><C> |
copy the measured values to the clipboard |
| <Ctrl><Alt><cursor left> |
move the measure instrument one pixel to the left |
| <Ctrl><Alt><cursor right> |
move the measure instrument one pixel to the right |
| <Ctrl><Alt><cursor up> |
move the measure instrument one pixel up |
| <Ctrl><Alt><cursor down> |
move the measure instrument one pixel down |
Have a look at the function key help
page for more details about the functions keys and how you can
configure them. diese angepaßt werden können, finden Sie auf der
Funktionstasten-Hilfeseite.
Remote Interface
The generel description of the remote interface is here.
Transfer of the measured values
| ValueID
|
Format of the return value |
| 1 |
radius of the cirle * 10
|
| 2 |
circumfence of a circle * 10
|
| 3 |
area of a circle * 10
|
Transfer of the positioning information
| ValueID
|
Format of the return value |
| 1 |
LoWord: x coordinate of the 1st point on the
circle
HiWord: y coordinate of the 1st point on the circle |
| 2 |
LoWord: x coordinate of the 2nd point on the
circle
HiWord: y coordinate of the 2nd point on the circle |
| 3 |
LoWord: x coordinate of the 3rd point on the
circle
HiWord: y coordinate of the 3rd point on the circle |
| 4 |
LoWord: x coordinate of the info field
HiWord: y coordinate of the info field |
|
