line
Functions
- measure the length of a line
- measure the angle between of a line and the horizontal
Description
This measure instrument is really simple and is used to measure the
distance between two points on the screen.
Die Meßlinie ist sehr einfach gehalten und dient der Bestimmung des
Abstands zwischen zwei Punkte auf dem Bildschirm.

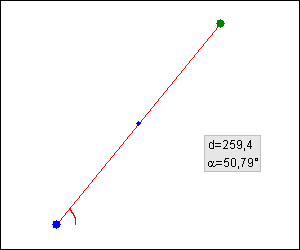

Move the blue and green point to define the line. The measure line
also calculates the angle between this line and a horizontal line
at the blue point.
Functions in the popup menu
Attach to window
|
when the measure instrument is moved, the window below will be
detected and the instrument attached to this window. If this window
is moved in a further operation, the measure instrument is moved
synchron to this window. This mode is active, as long as the menu
item Attach to window is checkd and the window is visible.
If you minimize this window or close the attached application, the
mode is deactivated, too. |
Modify - Set to origin state
|
the measure instrument is moved to a defined start
position |
Modify - Create Copy
|
a copy of the current measure instrument will be created. The
Copy is disabled, but can be enabled or deleted with its popup
menu |
Supported function keys
<Ctrl><Alt><C> |
copy the measured values to the clipboard |
<Ctrl><Alt><cursor left> |
move the measure instrument one pixel to the left |
<Ctrl><Alt><cursor right> |
move the measure instrument one pixel to the right |
<Ctrl><Alt><cursor up> |
move the measure instrument one pixel up |
<Ctrl><Alt><cursor down> |
move the measure instrument one pixel down |
Have a look at the function key help
page for more details about the functions keys and how you can
configure them.
Remote Interface
The generel description of the remote interface is here.
Transfer of the measured values
ValueID
|
Format of the return value |
1 |
length of the line * 10
|
2 |
measured angle * 10
|
Transfer of the positioning information
ValueID
|
Format of the return value |
1 |
LoWord: x coordinate of the start point
HiWord: y coordinate of the start point |
2 |
LoWord: x coordinate of the end point
HiWord: y coordinate of the end point |
3 |
LoWord: x coordinate of the info field
HiWord: y coordinate of the info field |
|
