Angle (3 points)
Functions
- measure the angle between two line (the intersection is on
the screen)
- measure the distance of both lines
Description

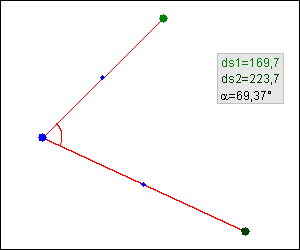

This angle measure (3 points) calculated the angle between to
lines, that intersect on the screen. Move the blue and the two
green points to define the lines and the intersection point. The
result is always less or equal 180°.
As an add on, this tool measures the length of both lines.
Functions in the popup menu
Attach to window
|
when the measure instrument is moved, the window below will be
detected and the instrument attached to this window. If this window
is moved in a further operation, the measure instrument is moved
synchron to this window. This mode is active, as long as the menu
item Attach to window is checkd and the window is visible.
If you minimize this window or close the attached application, the
mode is deactivated, too. |
Modify - Set to origin state
|
the measure instrument is moved to a defined start
position |
Modify - Create Copy
|
a copy of the current measure instrument will be created. The
Copy is disabled, but can be enabled or deleted with its popup
menu |
Supported function keys
<Ctrl><Alt><C> |
copy the measured values to the clipboard |
<Ctrl><Alt><cursor left> |
move the measure instrument one pixel to the left |
<Ctrl><Alt><cursor right> |
move the measure instrument one pixel to the right |
<Ctrl><Alt><cursor up> |
move the measure instrument one pixel up |
<Ctrl><Alt><cursor down> |
move the measure instrument one pixel down |
Have a look at the function key help
page for more details about the functions keys and how you can
configure them.
Remote Interface
The generel description of the remote interface is here.
Transfer of the measured values
ValueID
|
Format of the return value |
1 |
length of line 1 * 10
|
2 |
length of line 2 * 10
|
3 |
measured angle * 10
|
Transfer of the positioning information
ValueID
|
Format of the return value |
1 |
LoWord: x coordinate of the start point
HiWord: y coordinate of the start point |
2 |
LoWord: x coordinate of the middle point
HiWord: y coordinate of the middle point |
2 |
LoWord: x coordinate of the end point
HiWord: y coordinate of the end point |
4 |
LoWord: x coordinate of the info field
HiWord: y coordinate of the info field |
|
